Highlight of the Products

  •  Ideal for cold water applications
  •  Safe for potable water
  •  Environment – friendly
  •  Wide range of pipes and fittings from 12″ to 4″
  •  UV stabilised
  •  Lead Free
  •  No bacterial growth
  •  Ease of installation
  •  Cost- effective solution
  •  Pipes manufactured as per ASTM D1785 and fittings as
    per ASTM D 2466 & 2467

Product Availability and Standards

VARIANTS SIZES AVAILABLE PIPE FITTINGS
Schedule 40 12” – 4” ASTM D 1785 ASTM D 2466
Schedule 80 12” – 4” ASTM D 1785 ASTM D 2467

Pressure Rating

PRESSURE RATING – UPVC PIPES SCH 40
NOMINAL DIA AVERAGE OUTER DIAMETER

(MM)

MIN. WALL THICKNESS(MM) MAX WORKING PRESSURE(KG/CM2) @ 23°C BURST PRESSURE
INCH MM (KG/CM2)
12 15 21.34 2.77 42.22 134.30
34 20 26.67 2.87 33.75 108.29
1 25 33.40 3.38 31.61 101.26
1 14 32 42.16 3.56 26.00 83.00
1 12 40 48.26 3.68 23.25 74.54
2 50 60.32 3.91 19.68 62.61
2 12 65 73.02 5.16 21.11 68.22
3 80 88.90 5.49 18.25 59.04
4 100 114.30 6.02 15.50 49.97
PRESSURE RATING – UPVC PIPES SCH 80
NOMINAL DIA AVERAGE OUTER DIAMETER

(MM)

MIN. WALL THICKNESS(MM) MAX WORKING PRESSURE(KG/CM2) @ 23°C BURST PRESSURE
INCH MM (KG/CM2)
12 15 21.34 3.73 59.76 191.30
34 20 26.67 3.91 48.54 154.69
1 25 33.40 4.55 44.26 142.05
1 14 32 42.16 4.85 36.61 116.76
1 12 40 48.26 5.08 33.04 106.15
2 50 60.32 5.54 28.14 90.65
2 12 65 73.02 7.01 29.57 95.65
3 80 88.90 7.62 26.00 84.33
4 100 114.30 8.56 22.54 73.11

Temperature De-Rating Factor for UPVC

OPERATING TEMPERATURE DE-RATING FACTOR
oC
23 1.00
27 0.88
32 0.75
38 0.62
43 0.51
49 0.40
54 0.31
60 0.22

Installation Procedure

A. Horizontal and vertical spacing in feet for pipe supporting (clamping of pipes)
NOMINAL PIPE DIA SCHEDULE 40 SCHEDULE 80
INCH MM TEMPERATURE °C TEMPERATURE °C
15.5 26.6 37.7 48.8 60 15.5 26.6 37.7 48.8 60
12" 15 5 4 12 4 12 3 2 12 4 12 4 12 4 2 12 2 12
34" 20 5 12 5 4 12 3 2 12 5 4 12 4 2 12 2 12
1" 25 6 5 12 5 3 12 3 5 12 5 4 12 3 2 12
1 14" 32 6 6 5 12 3 12 3 5 12 5 12 5 3 3
1 12" 40 6 12 6 5 12 3 12 3 12 6 5 12 5 3 12 3
2" 50 7 6 12 6 4 3 12 6 5 12 5 3 12 3
2 12" 63 7 12 7 12 6 12 4 12 4 6 12 6 5 12 4 3
3" 75 8 7 12 7 4 12 4 7 7 6 4 3 12
4" 100 9 8 12 7 12 5 4 12 7 12 7 6 12 4 12 4

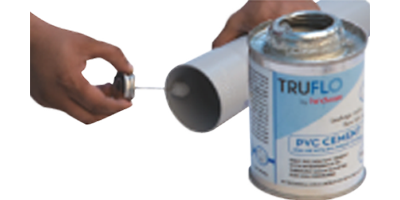

B. Installation with Solvent Cement

CUTTING

De-Burring

Cleaning/Dry

Solvent Cementing

Assembly
Solvent Cemented Jointing

a. Dry fitment-check joint of pipe to fitting without solvent cement. Should fit up to 60 – 70%

b. Cold fusion joint (cold welded joint)

c. For diameters 12" to 2”, single step solvent cement

d. For diameters 212" to 4”, 2 step solvent cement (Primer + Solvent Cement)

e. Primer helps to clean the surface of pipe & fitting and soften the material

f. Set time-After application of solvent cement, it takes some time for the joint to set, subject to atmospheric conditions and pipe diameter

AVERAGE INITIAL SET SCHEDULE FOR UPVC SOLVENT CEMENT
TEMP RANGE PIPE SIZE 12” – 1 14 PIPE SIZE 1 12” - 3” PIPE SIZE 3 12” - 4”
16° - 38°C 2 minutes 5 minutes 30 minutes
5° - 16°C 5 minutes 10 minutes 2 hours
-18° - -5°C 10 minutes 15 minutes 12 hours

Note - Typical set schedule is required time before it is advisable to carefully handle joint. In wet or humid conditions, additional set time maybe required of up to 50% of amount listed. Use as general guidelines only.

g. Cure time-Curing time is longer than the set time. Curing means the joint has completely matured

AVERAGE JOINT CURE SCHEDULE FOR UPVC SOLVENT CEMENT
RELATIVE HUMIDITY60% OR LESS PIPE 12” – 1 14 PIPE 1 12” – 2” PIPE 2 12” – 4”
TEMP. RANGES DURING ASSEMBLY & CURE PERIODS BAR BAR BAR
UP TO 11 11 TO 26 UP TO 11 11 TO 22 UP TO 11 11 TO 22
16° - 38°C 15 min 6 hrs 30 min 12 hrs 1 12 hrs 24 hrs
5° - 16°C 10 min 12 hrs 45 min 24 hrs 4 hrs 48 hrs
–18° - –5°C 15 min 48 hrs 1 hr 96 hrs 72 hrs 8 days

Note - Joint cure schedule is the necessary time to allow before pressurizing system. In damp or humid weather allow 50% more cure time.

h. The pressure test can only be performed after the joint is completely cured

i. Compressed air cannot be used for leakage test

j. In case of using paint on UPVC piping system, use only Latex based paints which are water based paints wherein the paint concentrate is diluted with water to make it workable and brushable. No Oil/Solvent based paints are to be used as these paints can drastically reduce the life of the systems

COLOUR CODING (PRINTING ON PIPES)
Type of PIPE Colour Image
SCH 40 Blue strip
SCH 80 Red strip

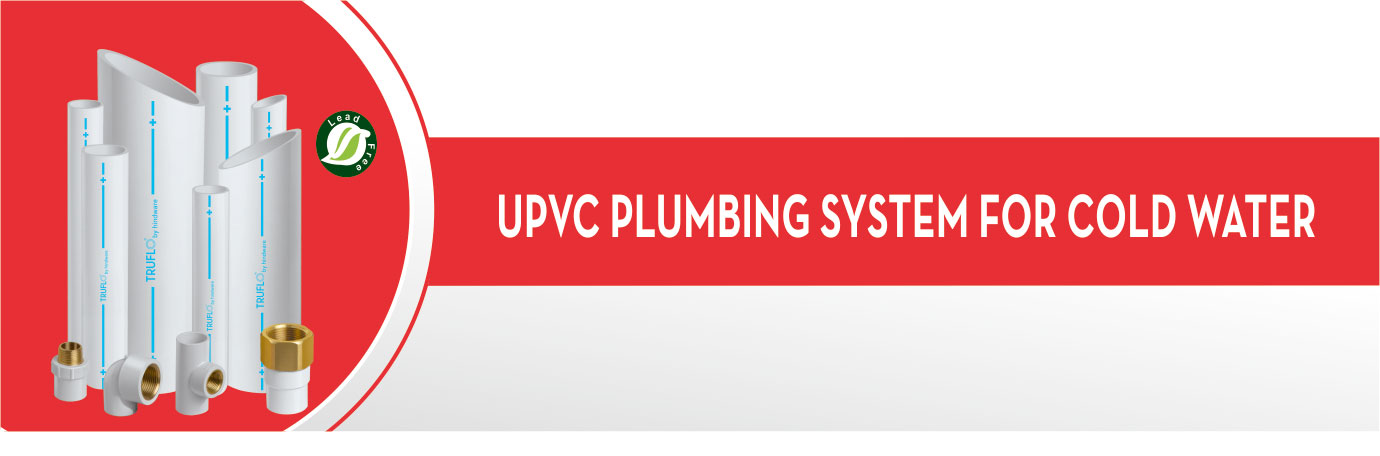

UPVC PLUMBING SYSTEM FOR COLD WATER


SCH 40/SCH 80 Pipes Manufactured as per ASTM D1785

UPVC PIPES(SCH-40) 3 mtr- HSN CODE:3917
ITEM CODE SIZE(MM) SIZE(IN)
UP4003015 15 12"
UP4003020 20 34"
UP4003025 25 1"
UP4003032 32 1 14"
UP4003040 40 1 12"
UP4003050 50 2"
UPVC PIPES(SCH-40) 6 mtr- HSN CODE:3917
ITEM CODE SIZE(MM) SIZE(IN)
UP4006015 15 12"
UP4006020 20 34"
UP4006025 25 1"
UP4006032 32 1 14"
UP4006040 40 1 12"
UP4006050 50 2"
UPVC PIPES(SCH-80) 3 mtr- HSN CODE:3917
ITEM CODE SIZE(MM) SIZE(IN)
UP8003015 15 12"
UP8003020 20 34"
UP8003025 25 1"
UP8003032 32 1 14"
UP8003040 40 1 12"
UP8003050 50 2"
UPVC PIPES(SCH-80) 6 mtr- HSN CODE:3917
ITEM CODE SIZE(MM) SIZE(IN)
UP8006015 15 12"
UP8006020 20 34"
UP8006025 25 1"
UP8006032 32 1 14"
UP8006040 40 1 12"
UP8006050 50 2"

SCH 40/SCH 80 Pipes Manufactured as per ASTM D2466


UPVC FITTINGS (SCH- 40) HSN CODE - 3917

Coupler Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF01000015 15 12"
UF01000020 20 34"
UF01000025 25 1"
UF01000032 32 1 14"
UF01000040 40 1 12"
UF01000050 50 2"
Elbow 90° Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF02000015 15 12"
UF02000020 20 34"
UF02000025 25 1"
UF02000032 32 1 14"
UF02000040 40 1 12"
UF02000050 50 2"
Tee 90° Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF03000015 15 12"
UF03000020 20 34"
UF03000025 25 1"
UF03000032 32 1 14"
UF03000040 40 1 12"
UF03000050 50 2"
Long Bend
ITEM CODE SIZE(MM) SIZE(IN)
UF28000015 15 12"
UF28000020 20 34"
UF28000025 25 1"
UF28000032 32 1 14"
UF28000040 40 1 12"
UF28000050 50 2"

UPVC FITTINGS (SCH-80) HSN CODE : 3917

Coupler Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF04000015 15 12"
UF04000020 20 34"
UF04000025 25 1"
UF04000032 32 1 14"
UF04000040 40 1 12"
UF04000050 50 2"
Elbow 90° Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF05000015 15 12"
UF05000020 20 34"
UF05000025 25 1"
UF05000032 32 1 14"
UF05000040 40 1 12"
UF05000050 50 2"
Bend 45° Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF06000015 15 12"
UF06000020 20 34"
UF06000025 25 1"
UF06000032 32 1 14"
UF06000040 40 1 12"
UF06000050 50 2"
Reducer Elbow 90°
ITEM CODE SIZE(MM) SIZE(IN)
UF07020015 20 X 15 34" X 12"
UF07025015 25 X 15 1" X 12"
UF07025020 25 X 20 1" X 34"
Tee 90° Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF08000015 15 12"
UF08000020 20 34"
UF08000025 25 1"
UF08000032 32 1 14"
UF08000040 40 1 12"
UF08000050 50 2"
Reducing Tee 90° Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF09020015 20×20×15 34×3412"
UF09025015 25×25×15 1"×1"×12"
UF09025020 25×25×20 1"×1"×34"
UF09032015 32×32×15 1 14"×1 1412"
UF0903202O 32×32×20 1 14"×1 1434"
UF09032025 32×32×25 1 14"×1 14"×1"
UF09040015 40×40×15 1 12"×1 1212"
UF09040020 40×40×20 1 12"×1 1234"
UF09040025 40×40×25 1 12"×1 12"×1"
UF09040032 40×40×32 1 12"×1 12"×1 14"
UF09050015 50×50×15 2"×2"×12"
UF09050020 50×50×20 2"×2"×34"
UF09050025 50×50×25 2"×2"×1"
UF09050032 50×50×32 2"×2"×1 14"
UF09050040 50×50×40 2"×2"×1 12"
Cross Tee 90°
ITEM CODE SIZE(MM) SIZE(IN)
UF10000015 15 12"
UF10000020 20 34"
End Cap Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF11000015 15 12"
UF11000020 20 34"
UF11000025 25 1"
UF11000032 32 1 14"
UF11000040 40 1 12"
UF11000050 50 2"
Reducer Bushing Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF12020015 20×15 3412"
UF12025015 25×15 1"×12"
UF12025020 25×20 1"×34"
UF12032015 32×15 1 1412"
UF12032020 32×20 1 1434"
UF12032025 32×25 1 14"×1"
UF12040015 40×15 1 12" x 12
UF12040020 40×20 1 1234
UF12040025 40×25 1 12"×1
UF12040032 40×32 1 12"×1 14"
UF12050015 50×15 2"×12"
UF12050020 50×20 2"×34"
UF12050025 50×25 2"×1"
UF12050032 50×32 2"×1 14"
UF12050040 50×40 2"×1 12"
Reducer MTA
ITEM CODE SIZE(MM) SIZE(IN)
UF19020015 20×15 3412"
Male Adapter Plastic Threaded(MAPT)
ITEM CODE SIZE(MM) SIZE(IN)
UF15000015 15 12"
UF15000020 20 34"
UF15000025 25 1"
UF15000032 32 1 14"
UF15000040 40 1 12"
UF15000050 50 2"
Female Adapter Plastic Threded(FAPT)
ITEM CODE SIZE(MM) SIZE(IN)
UF16000015 15 12"
UF16000020 20 34"
UF16000025 25 1"
UF16000032 32 1 14"
UF16000040 40 1 12"
UF16000050 50 2"
Union
ITEM CODE SIZE(MM) SIZE(IN)
UF17000015 15 12"
UF17000020 20 34"
UF17000025 25 1"
UF17000032 32 1 14"
UF17000040 40 1 12"
UF17000050 50 2"
Tank Nipple
ITEM CODE SIZE(MM) SIZE(IN)
UF27000015 15 12"
UF27000020 20 34"
UF27000025 25 1"
UF27000032 32 1 14"
UF27000040 40 1 12"
UF27000050 50 2"
Reducer
ITEM CODE SIZE(MM) SIZE(IN)
UF18020015 20×15 3412"
UF18025015 25×15 1"×12"
UF18025020 25×20 1"×34"
UF18032015 32×15 1 1412"
UF18032020 32×20 1 1434"
UF18032025 32×25 1 14"×1"
UF18040015 40×15 1 1212"
UF18040020 40×20 1 1234"
UF18040025 40×25 1 12"×1"
UF18040032 40×32 1 12"×1 14"
UF18050015 50×15 2"×12"
UF18050020 50×20 2"×34"
UF18050025 50×25 2"×1"
UF18050032 50×32 2"×1 14"
UF18050040 50×40 2"×1 12"

UPVC FITTINGS - BRASS - SCH 80 - HSN CODE : 3917

Elbow 90° (Brass)
ITEM CODE SIZE(MM) SIZE(IN)
UF20015015 15×15 1212"
UF20020015 20×15 3412"
UF20025025 25×25 1"×1"
UF20025020 25×20 1"×34"
UF20025015 25×15 1"×12"
Tee (Brass)
ITEM CODE SIZE(MM) SIZE(IN)
UF21015015 15×15×15 121212"
UF21020015 20×20×15 343412"
UF21025015 25×25×15 1"×1"×12"
UF21025020 25×25×20 1"×1"×34"
UF21025025 25×25×25 1"×1"×1"
Reducing FTA (Brass)
ITEM CODE SIZE(MM) SIZE(IN)
UF24020015 20×15 3412"
UF24025015 25×15 1"×12"
Male Thread Adaptor (Brass) -MABT
ITEM CODE SIZE(MM) SIZE(IN)
UF22000015 15 12"
UF22000020 20 34"
UF22000025 25 1"
UF22000032 32 1 14"
UF22000040 40 1 12"
UF22000050 50 2"
Female Thread Adaptor (Brass) - FABT
ITEM CODE SIZE(MM) SIZE(IN)
UF23000015 15 12"
UF23000020 20 34"
UF23000025 25 1"
UF23000032 32 1 14"
UF23000040 40 1 12"
UF23000050 50 2"
Reducing MTA (Brass)
ITEM CODE SIZE(MM) SIZE(IN)
UF25020015 20×15 3412"
UF25025015 25×15 1"×12"
UPVC PIPES - (SCH-40) 3 mtr - HSN CODE: 3917
ITEM CODE SIZE(MM) SIZE(IN)
UP4003065 65 2 12"
UP4003080 80 3"
UP4003100 100 4"
UPVC PIPES - (SCH-40) 6 mtr - HSN CODE: 3917
ITEM CODE SIZE(MM) SIZE(IN)
UP4006065 65 2 12"
UP4006080 80 3"
UP4006100 100 4"
UPVC PIPES - (SCH-80) 3 mtr - HSN CODE: 3917
ITEM CODE SIZE(MM) SIZE(IN)
UP8003065 65 2 12"
UP8003080 80 3"
UP8003100 100 4"
UPVC PIPES - (SCH-80) 6 mtr - HSN CODE: 3917
ITEM CODE SIZE(MM) SIZE(IN)
UP8006065 65 2 12"
UP8006080 80 3"
UP8006100 100 4"

UPVC FITTINGS - SCH 80 - HSN CODE : 3917

Coupler Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF04000065 65 2 12"
UF04000080 80 3"
UF04000100 100 4"
Elbow 90° Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF05000065 65 2 12"
UF05000080 80 3"
UF05000100 100 4"
Tee 90° Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF08000065 65 2 12"
UF08000080 80 3"
UF08000100 100 4"
Reducing Bushing Plain
ITEM CODE SIZE(MM) SIZE(IN)
UF13065050 65×50 2 12"×2"
UF13080050 80×50 3"×2"
UF13080065 80×65 3"×2 12"
UF13100050 100×50 4"×2"
UF13100065 100×65 4"×2 12"
UF13100080 100×80 4"×3"
Reducer Bushing Plain (IPSxCTS)
ITEM CODE SIZE(MM) SIZE(IN)
UF14065050 65 x 50 2 12" IPS X 2" CTS
UF14080050 80 x 50 3" IPS X 2" CTS
UF14100050 100 x 50 4" IPS X 2" CTS
Plastic Clamp – HSN CODE: 3917
ITEM CODE SIZE(MM) SIZE(IN)
UEPC020015 15 12"
UEPC020020 20 34"
UEPC020025 25 1"
UEPC020032 32 1 14"
UEPC020040 40 1 12"
UEPC020050 50 2"

UPVC FITTINGS – COMMON – HSN CODE: 3917

Ball Valve
ITEM CODE SIZE(MM) SIZE(IN)
UEBV010015 15 12"
UEBV010020 20 34"
UEBV010025 25 1"
UEBV010032 32 1 14"
UEBV010040 40 1 12"
UEBV010050 50 2"
Powder Coated Metal Clamp – HSN CODE: 8308
ITEM CODE SIZE(MM) SIZE(IN)
UEPC010015 15 12"
UEPC010020 20 34"
UEPC010025 25 1"
UEPC010032 32 1 14"
UEPC010040 40 1 12"
UEPC010050 50 2"
Threaded End Plug – HSN CODE: 3917
ITEM CODE SIZE(MM) SIZE(IN)
CEEP010015 15 12"
CEEP010020 20 34"

SOLVENT CEMENT & PRIMER – HSN CODE: 3506

Medium Duty 1 Step (Clear)
ITEM CODE QTY (ML) Tin/Tube
UESCMD0029 29 Tube
UESCMD0059 59 Tube
UESCMD1059 59 Tin
UESCMD0118 118 Tin
UESCMD0237 237 Tin
UESCMD0473 473 Tin
Heavy Duty 2 Step (Grey)
ITEM CODE QTY (ML) Tin/Tube
UESGHD0237 237 Tin
UESGHD0473 473 Tin
Primer
ITEM CODE QTY (ML) Tin/Tube
PRIMER0473 473 Tin

Truflo UPVC Pipes & Fittings available in best quality and price

Truflo UPVC pipes & fittings are used for the high-pressure water distribution system and are an ideal replacement for galvanised iron pipe system for all cold water applications. They are UV stabilised and provide leak-proof joints as they are welded by solvent cement.

We have attained an excellent reputation in manufacturing and supplying UPVC Pipes that are known for their durability and dimensional accuracy. The pipes are fabricated done with high-quality materials and modern technology as per the latest industrial norms. Truflo’s offered pipes are available with us in varied specifications for serving the variegated needs of customers, thus ranking us among the best UPVC pipe manufacturers.

Our UPVC pipes and UPVC fittings are available in a wide range. We manufacture Class - SCHEDULE 40, and SCHEDULE 80 of 3 metres and 6 metres of UPVC pipes. The UPVC fittings of SCHEDULE 40 for coupler plain, elbow 90 plain, tee 90 plain of different sizes.
Further, UPVC fittings like elbow 90 plain, bend 45 plain, reducer elbow 90, tee 90 plain, and coupler plain of SCHEDULE 80 are available in different sizes for your specific requirements. Other fittings available are reducing tee 90 plain, cross tee 90, end cap plain, reducer bushing plain, MAPT, FAPT, union, reducer and reducer MTA. The brass fitting range available in SCH-80 are elbow 90, tee reducing FTA, male thread adopter, female thread adopter, and reducing MTA.

Applications and Benefits of Truflo UPVC Pipes & Fittings

UPVC pipes and fittings are used in a wide range of applications including Cold Water Distribution system for bathrooms, kitchens, gardens, washing places, toilets in residential blocks, commercial complex, offices, factories, laboratories, bus stands, railways, airports, hotels and hospitals.

They are highly feasible for distribution of clean and hygienic water.
They ensure higher and smooth flow of tube-well connections.
The pipes are corrosion-free.
The pipes are light in weight, convenient to handle, store, transport as well as install.
They require low maintenance and are easy to maintain as well as do not cost much for installation.
The pipes come with an ultra-violet stabilizer; hence, weather and sunlight have no effect on them.
Other advantages include non-toxic, longer life, easy laying and joining, low thermal conductivity, and resistance to most chemicals.

ABOUT TRUFLO

Introducing TRUFLO by hindware pipes & fittings. Building on a legacy of innovation, TRUFLO represents the very superiority and quality that has been built over five decades now. With TRUFLO, Hindware reaffirms its commitment to provide complete plumbing solutions. Hindware and TRUFLO are part of , one of the best and first to bring Fine Vitreous China Sanitaryware to the Indian consumers.

Mailing Address
  • 501 & 504, Block – A, “The Platina”, Survey No.136, Gachibowli Miyapur Road, Gachibowli, Hyderabad, Telangana – 500 032.
  • 040 – 6628 8000
  • truflopipes@hindware.co.in
