Highlight of the Products

  •  Perfect solution for discharge of soil, waste and rain water
  •  Ventilation
  •  Available in 2 variants-Ring fit and Solvent cement jointing
  •  Fast and easy jointing
  •  100% Leak-free joints
  •  U V stabilised
  •  Wide range of fittings
  •  Pipes manufactured as per IS:13592 and fittings as per IS:14735

Product Availability and Standards

VARIANTS SIZES AVAILABLE PIPE FITTINGS
Type A – Ring fit 75, 110, 160 mm IS:13592:2013 IS:14735:1999
Type A – Selfit 40, 50, 75, 90, 110, 160 mm
Type B – Ring fit 75, 110, 160 mm IS:13592:2013 IS:14735:1999
Type B – Selfit 40, 50, 63, 75, 90, 110, 160 mm

Advantages of truflo swr piping system:

a. UV stabilized

b. Light weight-The low weight of the system makes it easy to install and reduces transportation, handling and installation costs

c. Smooth internal finish, no scale, no corrosion resulting in better flow rates

d. 100% recyclable

e. Complete SWR range of pipes and fittings-75, 90, 110 and 160 mm

f. Accurate dimensions, ensuring perfect fit and leak free joints

g. Ring fit joint allows for thermal expansion and contraction of pipe

h. Unmatched strength and performance, high operating life

i. Fast installation

j. Cost-effective

Installation Procedure

A. Installation for Ring Fit Joint System

Cutting

De-Burring

Cleaning/Dry

Check for Rubber Ring

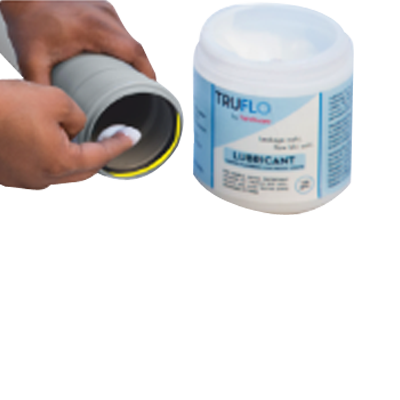

Apply Lubricant

Assembly
B. Installation for Solvent Cemented Joint System

Cutting

De-Burring

Cleaning/Dry

Solvent Cementing

Assembly

Colour Coding (Printing of Pipes)

Type of PIPE Colour Image
Type A Blue strip
Type B White strip

SWR PIPES & FITTINGS


SWR RINGFIT PIPES MANUFACTURED AS PER IS: 13592: 2013 - HSN CODE: 3917

SWR RINGFIT PIPES TYPE A (3MTR)
ITEM CODE SIZE(MM) SIZE(IN)
SPRFA3075 75 2 12"
SPRFA3090 90 3"
SPRFA3110 110 4"
SPRFA3160 160 6"
SWR RINGFIT PIPES TYPE A (6MTR)
ITEM CODE SIZE(MM) SIZE(IN)
SPRFA6075 75 2 12"
SPRFA6090 90 3"
SPRFA6110 110 4"
SPRFA6160 160 6"
SWR RINGFIT PIPES TYPE A (12 Feet)
ITEM CODE SIZE(MM) SIZE(IN)
SPRFA8075 75 2 12"
SPRFA8090 90 3"
SPRFA8110 110 4"
SWR RINGFIT PIPES TYPE A (3 Mtr) Double Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFAD3075 75 2 12"
SPRFAD3090 90 3"
SPRFAD3110 110 4"
SPRFAD3160 160 6"
SWR RINGFIT PIPES TYPE A (2 Feet) Double Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFA2075 75 2 12"
SPRFA2090 90 3"
SPRFA2110 110 4"
SWR RINGFIT PIPES TYPE A (3 Feet) Double Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFA1075 75 2 12"
SPRFA1090 90 3"
SPRFA1110 110 4"
SPRFA1160 160 6"
SWR RINGFIT PIPES TYPE A (4 Feet) Double Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFA4075 75 2 12"
SPRFA4090 90 3"
SPRFA4110 110 4"
SWR RINGFIT PIPES TYPE A (6 Feet) Double Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFA7075 75 2 12"
SPRFA7090 90 3"
SPRFA7110 110 4"
SWR RINGFIT PIPES TYPE A (6 Feet) Single Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFA9075 75 2 12"
SPRFA9110 110 4"
SWR RINGFIT PIPES TYPE B (3MTR)
ITEM CODE SIZE(MM) SIZE(IN)
SPRFB3075 75 2 12"
SPRFB3090 90 3"
SPRFB3110 110 4"
SPRFB3160 160 6"
SWR RINGFIT PIPES TYPE B (6MTR)
ITEM CODE SIZE(MM) SIZE(IN)
SPRFB6075 75 2 12"
SPRFB6090 90 3"
SPRFB6110 110 4"
SPRFB6160 160 6"
SWR RINGFIT PIPES TYPE B (12 Feet)
ITEM CODE SIZE(MM) SIZE(IN)
SPRFB8075 75 2 12"
SPRFB8090 90 3"
SPRFB8110 110 4"
SWR RINGFIT PIPES TYPE B (3 Mtr) Double Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFBD3075 75 2 12"
SPRFBD3110 110 4"
SWR RINGFIT PIPES TYPE B (2 Feet) Double Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFB2075 75 2 12"
SPRFB2110 110 4"
SWR RINGFIT PIPES TYPE B (3 Feet) Double Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFB1075 75 2 12"
SPRFB1110 110 4"
SPRFB1160 160 6"
SWR RINGFIT PIPES TYPE B (4 Feet) Double Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFB4075 75 2 12"
SPRFB4110 110 4"
SWR RINGFIT PIPES TYPE B (6 Feet) Double Socket
ITEM CODE SIZE(MM) SIZE(IN)
SPRFB7075 75 2 12"
SPRFB7110 110 4"
SPRFB7160 160 6"

SWR FITTINGS MANUFACTURED AS PER IS : 14735 : 1999 (RINGFIT) - HSN CODE: 3917

Bend 45°
ITEM CODE SIZE(MM) SIZE(IN)
SF02000075 75 2 12"
SF02000090 90 3"
SF02000110 110 4"
SF02000160 160 6"
Bend 87.5°
ITEM CODE SIZE(MM) SIZE(IN)
SF01000075 75 2 12"
SF01000090 90 3"
SF01000110 110 4"
SF01000160 160 6"
Bend 87.5° with Door
ITEM CODE SIZE(MM) SIZE(IN)
SF05000075 75 2 12"
SF05000090 90 3"
SF05000110 110 4"
SF05000160 160 6"
Bend 87.5° with Front Door L-H
ITEM CODE SIZE(MM) SIZE(IN)
SF03000110 110 4"
Bend 87.5° with Front Door R-H
>
ITEM CODE SIZE(MM) SIZE(IN)
SF04000110 110 4"
Coupler
ITEM CODE SIZE(MM) SIZE(IN)
SF06000075 75 2 12"
SF06000090 90 3"
SF06000110 110 4"
SF06000160 160 6"
Repair Coupler
ITEM CODE SIZE(MM) SIZE(IN)
SF22000075 75 2 12"
SF22000090 90 3"
SF22000110 110 4"
SF22000160 160 6"
Eccentric Reducer
ITEM CODE SIZE(MM) SIZE(IN)
SF15110075 110×75 4" x 2 12"
SF15160110 160×110 6" x 4"
Single Tee
ITEM CODE SIZE(MM) SIZE(IN)
SF07000075 75 2 12"
SF07000090 90 3"
SF07000110 110 4"
SF07000160 160 6"
Single Tee with Door
ITEM CODE SIZE(MM) SIZE(IN)
SF08000075 75 2 12"
SF08000090 90 3"
SF08000110 110 4"
SF08000160 160 6"
Single Tee with Front Door (LH/RH)
ITEM CODE SIZE(MM) SIZE(IN)
SF09000110 110 (LH) 4"
SF10000110 110 (RH) 4"
Double Tee
ITEM CODE SIZE(MM) SIZE(IN)
SF13000075 75 2 12"
SF13000110 110 4"
Double Tee with Center Door
ITEM CODE SIZE(MM) SIZE(IN)
SF14000075 75 2 12"
SF14000110 110 4"
Reducing Tee
ITEM CODE SIZE(MM) SIZE(IN)
SF19110075 110×75 4" ×2 12"
SF19160075 160×75 6"×2 12"
SF19160110 160×110 6"×4"
Reducing Tee with Door
ITEM CODE SIZE(MM) SIZE(IN)
SF20110075 110×75 4" ×2 12"
SF20160075 160×75 6"×2 12"
SF20160110 160×110 6"×4"
Swept Tee
ITEM CODE SIZE(MM) SIZE(IN)
SF23000075 75 2 12"
SF23000110 110 4"
Swept Tee with Door
ITEM CODE SIZE(MM) SIZE(IN)
SF24000075 75 2 12"
SF24000110 110 4"
Single Y
ITEM CODE SIZE(MM) SIZE(IN)
SF25000075 75 2 12"
SF25000090 90 3"
SF25000110 110 4"
SF25000160 160 6"
Single Y with Door
ITEM CODE SIZE(MM) SIZE(IN)
SF12000075 75 2 12"
SF12000090 90 3"
SF12000110 110 4"
SF12000160 160 6"
Double Y
ITEM CODE SIZE(MM) SIZE(IN)
SF74000075 75 2 12"
SF74000110 110 4"
Double Y with Center Door
ITEM CODE SIZE(MM) SIZE(IN)
SF75000075 75 2 12"
SF75000110 110 4"
Reverse Y
ITEM CODE SIZE(MM) SIZE(IN)
SF79000075 75 2 12"
Reducing Y
ITEM CODE SIZE(MM) SIZE(IN)
SF11110075 110×75 4"×2 12"
Reducing Y with Door
ITEM CODE SIZE(MM) SIZE(IN)
SF12110075 110×75 4"×2 12"
Cleaning Pipe
ITEM CODE SIZE(MM) SIZE(IN)
SF18000075 75 2 12"
SF16000110 110 4"
Bell Mouth Trap
ITEM CODE SIZE(MM) SIZE(IN)
SF77110075 110×75 4" x 2 12"
"O" Ring
ITEM CODE SIZE(MM) SIZE(IN)
SEORING075 75 2 12"
SEORING100 100 3"
SEORING110 110 4"
SEORING160 160 6"
Height Riser
ITEM CODE SIZE(MM) SIZE(IN)
SF26000110 110 X 50/40 4" X 1 12" X 1 14"

SWR SELFIT PIPES MANUFACTURED AS PER IS : 13592 : 2013 - HSN CODE: 3917

SWR SELFIT PIPES TYPE A (3 Mtr)
ITEM CODE SIZE (MM) SIZE (IN)
SPSFA3040 40 1 14"
SPSFA3050 50 1 12"
SPSFA3075 75 2 12"
SPSFA3090 90 3"
SPSFA3110 110 4"
SPSFA3160 160 6"
SWR SELFIT PIPES TYPE A (5 Mtr)
ITEM CODE SIZE (MM) SIZE (IN)
SPSFA5075 75 2 12"
SPSFA5110 110 4"
SWR SELFIT PIPES TYPE A (6Mtr)
ITEM CODE SIZE (MM) SIZE (IN)
SPSFA6040 40 1 14"
SPSFA6050 50 1 12"
SPSFA6075 75 2 12"
SPSFA6090 90 3"
SPSFA6110 110 4"
SPSFA6160 160 6"
SWR SELFIT PIPES TYPE B (3 Mtr)
ITEM CODE SIZE (MM) SIZE (IN)
SPSFB3040 40 1 14"
SPSFB3050 50 1 12"
SPSFB3063 63 2"
SPSFB3075 75 2 12"
SPSFB3090 90 3"
SPSFB3110 110 4"
SPSFB3160 160 6"
SPSFB3315 315 12"
SWR SELFIT PIPES TYPE B (6Mtr)
ITEM CODE SIZE (MM) SIZE (IN)
SPSFB6040 40 1 14"
SPSFB6050 50 1 12"
SPSFB6063 63 2"
SPSFB6075 75 2 12"
SPSFB6090 90 3"
SPSFB6110 110 4"
SPSFB6160 160 6"
SPSFB6315 315 12"
SWR SELFIT PIPES TYPE B (2 Feet) Double Socket
ITEM CODE SIZE (MM) SIZE (IN)
SPSFB2075 75 2 12"
SPSFB2090 90 3"
SPSFB2110 110 4"
SWR SELFIT PIPES TYPE B (4 Feet) Double Socket
ITEM CODE SIZE (MM) SIZE (IN)
SPSFB4075 75 2 12"
SPSFB4090 90 3"
SPSFB4110 110 4"
SWR SELFIT PIPES TYPE B (6 Feet) Double Socket
ITEM CODE SIZE (MM) SIZE (IN)
SPSFB7075 75 2 12"
SPSFB7090 90 3"
SPSFB7110 110 4"
SPSFB7160 160 6"

SWR FITTINGS MANUFACTURED AS PER IS : 14735 : 1999 (SELFIT) - HSN CODE: 3917

Bend 45o
ITEM CODE SIZE (MM) SIZE (IN)
SF28000075 75 2 12"
SF28000090 90 3"
SF28000110 110 4"
SF28000160 160 6"
Bend 87.5o
ITEM CODE SIZE (MM) SIZE (IN)
SF27000075 75 2 12"
SF27000090 90 3"
SF27000110 110 4"
SF27000160 160 6"
Bend 87.5o with Door
ITEM CODE SIZE (MM) SIZE (IN)
SF31000075 75 2 12"
SF31000090 90 3"
SF31000110 110 4"
SF31000160 160 6"
Bend 87.5o with Front Door L-H
ITEM CODE SIZE (MM) SIZE (IN)
SF29000110 110 4"
Bend 87.5o with Front Door R - H
ITEM CODE SIZE (MM) SIZE (IN)
SF30000110 110 4"
Coupler
ITEM CODE SIZE (MM) SIZE (IN)
SF32000075 75 2 12"
SF32000090 90 3"
SF32000110 110 4"
SF32000160 160 6"
Repair Coupler
ITEM CODE SIZE (MM) SIZE (IN)
SF50000075 75 2 12"
SF50000090 90 3"
SF50000110 110 4"
SF50000160 160 6"
Staright Reducer (Concentric)
ITEM CODE SIZE (MM) SIZE (IN)
SF49110075 110X75 4" X 2 12"
SF49110090 110X90 4" X 3"
SF49160110 160X110 6" X 4"
Eccentric Reducer
ITEM CODE SIZE (MM) SIZE (IN)
SF45110075 110X75 4" X 2 12"
SF45160110 160X110 6" X 4"
Door Cap
ITEM CODE SIZE (MM) SIZE (IN)
SF53000075 75 2 12"
SF53000090 90 3"
SF53000110 110 4"
Straigh Reducing Bush
ITEM CODE SIZE (MM) SIZE (IN)
SF66160110 160X110 6" X 4"
Eccentric Reducer Bush
ITEM CODE SIZE (MM) SIZE (IN)
SF54110063 110X63 4" X 2"
SF54110075 110X75 4" X 2 12"
SF54160110 160X110 6" X 4"
Single Tee
ITEM CODE SIZE (MM) SIZE (IN)
SF33000075 75 2 12"
SF33000090 90 3"
SF33000110 110 4"
SF33000160 160 6"
Single Tee with Door
ITEM CODE SIZE (MM) SIZE (IN)
SF34000075 75 2 12"
SF34000090 90 3"
SF34000110 110 4"
SF34000160 160 6"
Single Tee with Front Door (LH/RH)
ITEM CODE SIZE (MM) SIZE (IN)
SF35000110 110 (LH) 4"
SF36000110 110 (RH) 4"
Double Tee
ITEM CODE SIZE (MM) SIZE (IN)
SF41000075 75 2 12"
SF41000110 110 4"
Double Tee with Centre Door
ITEM CODE SIZE (MM) SIZE (IN)
SF42000075 75 2 12"
SF42000110 110 4"
Reducing Tee
ITEM CODE SIZE (MM) SIZE (IN)
SF47110075 110X75 4" X 2 12"
SF47160075 160X75 6" x 2 12"
SF47160110 160X110 6" X 4"
Reducing Tee with Door
ITEM CODE SIZE (MM) SIZE (IN)
SF48110075 110X75 4" X 2 12"
SF48160075 160X75 6" X 2 12"
SF48160110 160X110 6" X 4"
Swept Tee
ITEM CODE SIZE (MM) SIZE (IN)
SF51000075 75 2 12"
SF51000110 110 4"
Swept Tee with Door
ITEM CODE SIZE (MM) SIZE (IN)
SF52000075 75 2 12"
SF52000110 110 4"
Single Y
ITEM CODE SIZE (MM) SIZE (IN)
SF37000075 75 2 12"
SF37000090 90 3"
SF37000110 110 4"
SF37000160 160 6"
Single Y with Door
ITEM CODE SIZE (MM) SIZE (IN)
SF40000075 75 2 12"
SF40000090 90 3"
SF40000110 110 4"
SF40000160 160 6"
Reducing Single Y
ITEM CODE SIZE (MM) SIZE (IN)
SF38110063 110X63 4" X 2"
SF38110075 110X75 4" x 2 12"
Reducing Single Y with Door
ITEM CODE SIZE (MM) SIZE (IN)
SF39110063 110X63 4" X 2"
SF39110075 110X75 4" X 2 12"
Double Y
ITEM CODE SIZE (MM) SIZE (IN)
SF43000075 75 2 12"
SF43000110 110 4"
Double Y with Centre Door
ITEM CODE SIZE (MM) SIZE (IN)
SF44000075 75 2 12"
SF44000110 110 4"
Cleaning Pipe
ITEM CODE SIZE (MM) SIZE (IN)
SF46000075 75 2 12"
SF46000110 110 4"
Socket Plug
ITEM CODE SIZE (MM) SIZE (IN)
SF65000075 75 2 12"
SF65000110 110 4"
Floor Trap with Single Outlet 4"
ITEM CODE SIZE (MM) SIZE (IN)
SF55000110 110 4"
Multi Floor Trap
ITEM CODE SIZE (MM) SIZE (IN)
SF76000110 110 4"
SF76000180 180 7"
Multi Floor Trap with Jali
ITEM CODE SIZE (MM) SIZE (IN)
SF60000110 110 4"
SF60000180 180 7"
Multi Floor Trap with 50mm Water Seal with Jali
ITEM CODE SIZE (MM) SIZE (IN)
- - -
Multi Floor Trap with 50mm Water Seal without Jali
ITEM CODE SIZE (MM) SIZE (IN)
- - -
End Plug for Multi Floor Trap
ITEM CODE SIZE (MM) SIZE (IN)
SF76000040 40 1 14"
SF76000050 50 1 12"
Gully Trap with Jali (Square Type)
ITEM CODE SIZE (MM) SIZE (IN)
SF57000110 110 4"
Gully Trap without Jali (Square type)
ITEM CODE SIZE (MM) SIZE (IN)
SF56000110 110 4"
Nahani Trap with Jali
ITEM CODE SIZE (MM) SIZE (IN)
SF61110075 110X75 4" X 2 12"
SF61110110 110X110 4" X 4"
SF61110090 110X90 4" X 3"
Nahani Trap without Jali
ITEM CODE SIZE (MM) SIZE (IN)
SF18110075 110X75 4" X 2 12"
SF18110090 110X90 4" X 3"
SF18110110 110X110 4" X 4"
P Trap
ITEM CODE SIZE (MM) SIZE (IN)
SF62110110 110X110 4" X 4"
SG62125110 125X110 4 12" X 4"
P Trap - Long
ITEM CODE SIZE (MM) SIZE (IN)
SF71110110 110X110 4" X 4"
S Trap
ITEM CODE SIZE (MM) SIZE (IN)
SF72110110 110X110 4" X 4"
SF72125110 125X110 4 12" X 4"
Q Trap
ITEM CODE SIZE (MM) SIZE (IN)
SF73110110 110X110 4" X 4"
SF73125110 125X110 4 12" X 4"
Bell Mouth Trap
ITEM CODE SIZE (MM) SIZE (IN)
SF78110075 110X75 4" X 2 12"
Round Jali
ITEM CODE SIZE (MM) SIZE (IN)
SF64000110 110 4"
Vent Cowl
ITEM CODE SIZE (MM) SIZE (IN)
SF68000075 75 2 12"
SF68000110 110 4"
WC Connector (Bend)
ITEM CODE SIZE (MM) SIZE (IN)
SF70125110 125X110 4 12" X 4"
WC Connector (Straight Red.)
ITEM CODE SIZE (MM) SIZE (IN)
SF69125110 125x110 4 12" x 4"
Pipe Clip
ITEM CODE SIZE (MM) SIZE (IN)
SF63000075 75 2 12"
SF63000110 110 4"
SF63000160 160 6"
Rubber Lubricant - HSN CODE: 3403
ITEM CODE PACK Wt(Gms)
SERLUB0100 Box 100
SERLUB0250 Box 250
SERLUB0500 Box 500
Solvent Cement - HSN CODE: 3503
ITEM CODE SIZE (MM) Qty. (ML)
PESCLR0050 Tin 50
PESCLR0100 Tin 100
PESCLR0250 Tin 250
PESCLR0500 Tin 500
PESCLR1000 Tin 1000

Superior quality SWR pipes & fittings

Truflo is a leading SWR pipes and fittings manufacturer. Its SWR (Soil, Waste and Rain) drainage system pipes and fittings are designed to meet the superior quality standards in terms of strength and other required mechanical aspects. SWR pipes have successfully replaced the conventional copper, asbestos cement, and iron drainage system. We hold expertise in manufacturing of SWR Pipes, which are widely acknowledged by the clients for their high quality, durability, and long service life. Our SWR Pipes are available to the clients in varied sizes and dimensions to suit their unique requirement. Truflo ISI Marked pipes are available in two types:

  • Type I - Used for the ventilation system and rainwater harvesting applications.
  • Type II - Used for soil and waste discharge systems.

Truflo SWR pipes have integrated ring support for quick and easy installation. Since the ring is pre-fitted in the groove of the socket, it is permanently positioned. The joint is made simply by pushing the spigot end into the socket end.

SWR fittings come with Self-Fit and Ring-Fit options; an array of products and accessories with great installation options and a top-quality finish. Truflo SWR Pipes & Fittings are manufactured in accordance with Bureau of Indian Standards (BIS) Specifications IS:13592 and IS 14735. The Self-Fit options include floor trap with single outlet, multi floor trap, Q trap, S trap, end plug for multi floor trap, bell mount trap, round jali, vent cowl, gully trap with jali(Square type), gully trap without jali (square type), WC connector (bend, straight), Nahani trap with and without jali, pipe clip, P trap, and P trap long among various others. The Ring Fit options include different variants in bends, single tees, cleaning pipes, couplers, repair coupler, accentric reducer, and more available in different sizes to fit the specific requirements of your applications. Truflo SWR piping systems come with integrated ring support that makes the installation trouble-free. They are watertight, and the installation process does not require much human workforce.

Applications and Benefits of SWR Pipes & Fittings:

Soil, Waste and Rain Water (SWR) Pipes & fittings are used for drainage & sewage applications at homes, offices, hotels, industries, hospitals, as well as public places such as airports, railway stations, bus stands etc.

The various benefits of Truflo SWR pipes and fittings are:

  • Chemical and corrosion-resistant.
  • Lightweight in comparison to traditional asbestos cement and copper iron pipes.
  • Manufactured with the highest quality standards and in a wide range.
  • Strong and long-lasting.
  • High flow rate, which is a result of a neatly finished inner surface. Thus, it puts an end to all the clogging and choking problems of drains.
  • Quick and standard installation
  • Elegant appearance
ABOUT TRUFLO

Introducing TRUFLO by hindware pipes & fittings. Building on a legacy of innovation, TRUFLO represents the very superiority and quality that has been built over five decades now. With TRUFLO, Hindware reaffirms its commitment to provide complete plumbing solutions. Hindware and TRUFLO are part of Brilloca. HSIL demerged its distribution and marketing business relating to building products into Brilloca.

Mailing Address
  • 501 & 504, Block – A, “The Platina”, Survey No.136, Gachibowli Miyapur Road, Gachibowli, Hyderabad, Telangana – 500 032.
  • 040 – 6628 8000
  • truflopipes@hindware.co.in
