About The System
TRUFLO CPVC Fire Protection Piping Systems are manufactured using high-quality chemicals co. ltd., Japan, a specialized thermoplastic compound.
Designed for automatic wet sprinkler systems, TRUFLO CPVC fire protection pipes are suitable for use in accordance with NFPA standards.
Manufactured in compliance with IS 16088:2012 and ASTM F439, TRUFLO CPVC fire protection systems offer excellent pressure-retaining capability, corrosion resistance, and sustained internal bore smoothness—ensuring dependable water flow when it matters most.
Backed by Sekisui Japan’s advanced Durastream X compound and TRUFLO’s unwavering commitment to quality, every system is designed to deliver safety, durability, and consistent performance in fire protection applications—building trust and reliability.

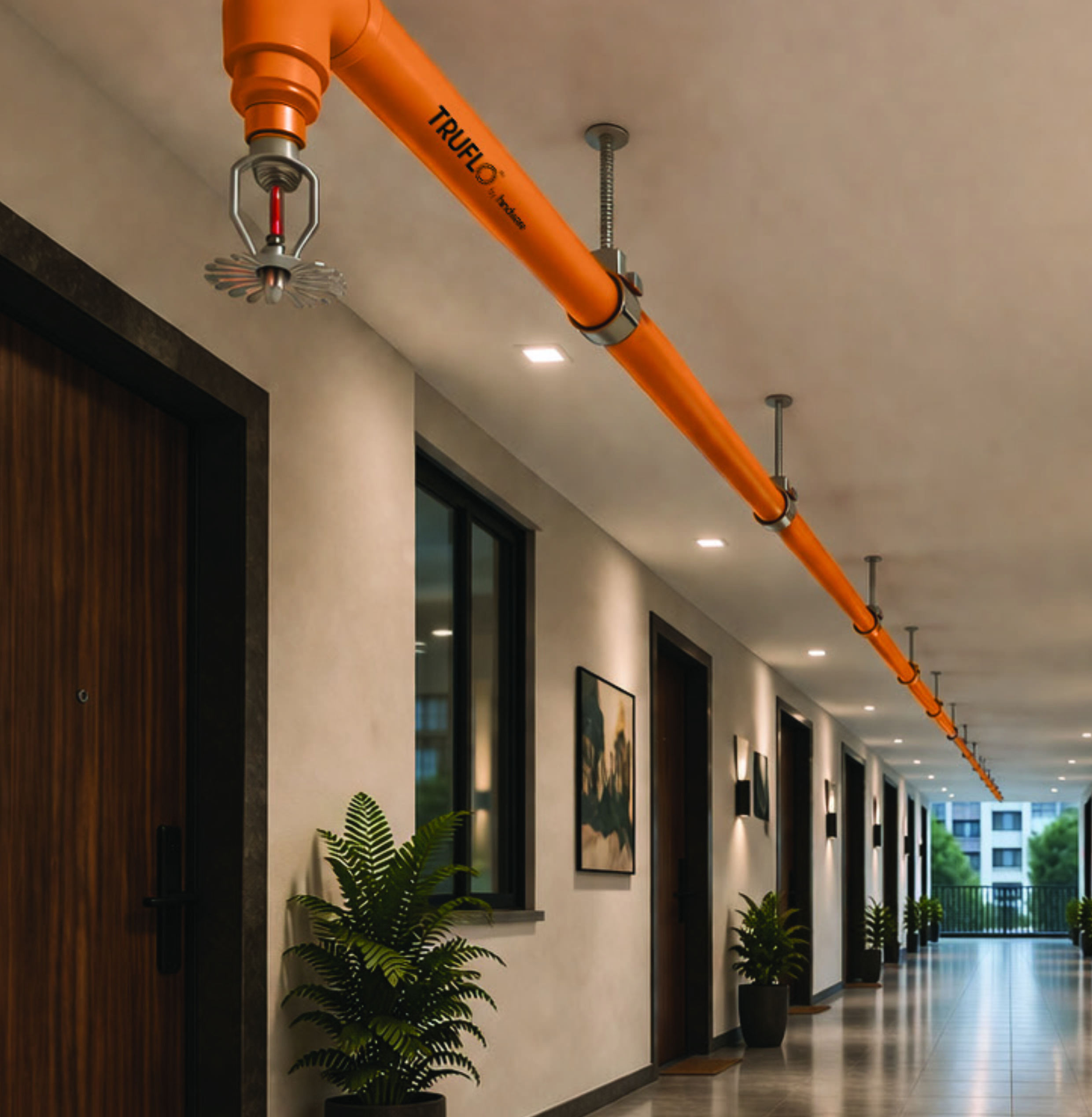

Engineered for automatic wet sprinkler systems, TRUFLO CPVC piping performs efficiently across a wide range of light hazard building applications.
- Residential buildings & homes (apartments, hotels)
- Educational institutions (schools, colleges)
- Commercial establishments under light hazard classification
With superior durability and minimal maintenance requirements, CPVC delivers a longer service life and better lifecycle value compared to traditional metal systems.
- Corrosion-free performance
- Lower maintenance
- Long-term reliability
- No scaling or rusting
- Faster and cleaner installation
Key Benefits
TRUFLO CPVC pipes combine advanced material properties with proven fire safety performance for depnedable sprinkler installation.
No rust. No scaling. Long term reliability.
(Performs reliably at elevated temperatures.
Built for durable, long term performance.
Lower lifecycle cost than metal systems.
(High Limiting Oxygen Index LOI 60) Inherently fire retardant material.
Easy handling and faster installation.
Quick solvent cement jointing - no hot work.
No ongoing upkeep required.

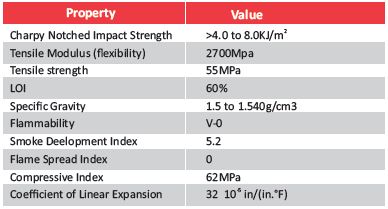

Technical Properties
Proven material properties for reliable fire protection performance.
Standards & Specifications
Tested and compliant with recognised standards
- Pipes: SDR 13.5 - IS 16088 - 2012
- Fittings: SCH 80 - ASTM F439

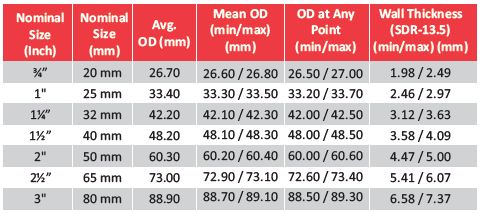

CPVC Fire Sprinkler Pipe Dimension Details (IS 16088:2012)
Working Pressure
rated for continuous operation at
12.3 kg/cm² (175 psi) at 65°C (150°F).

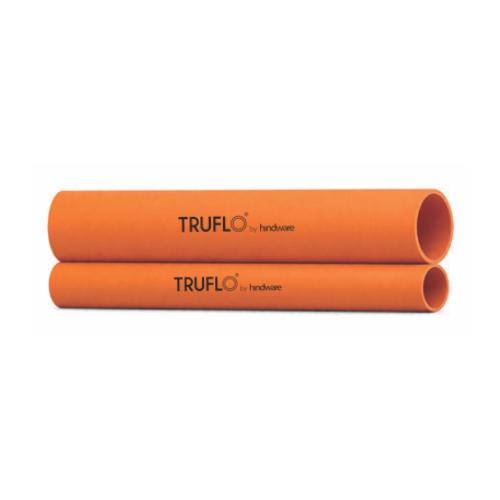

Pipes: 3 & 5Mtr Lengths

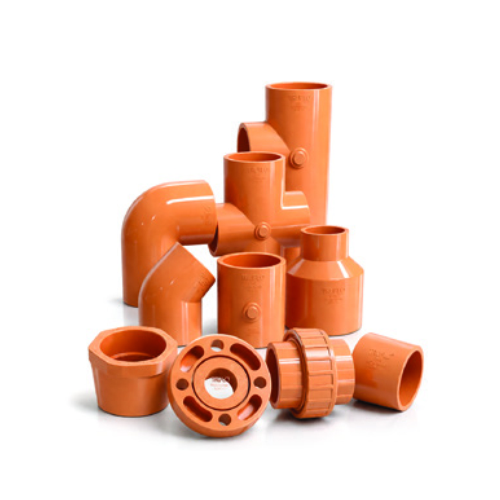

Plain Fittings: Elbows, Couplers, Tees, Reducers, Unions, End caps, Bushes & Flanges

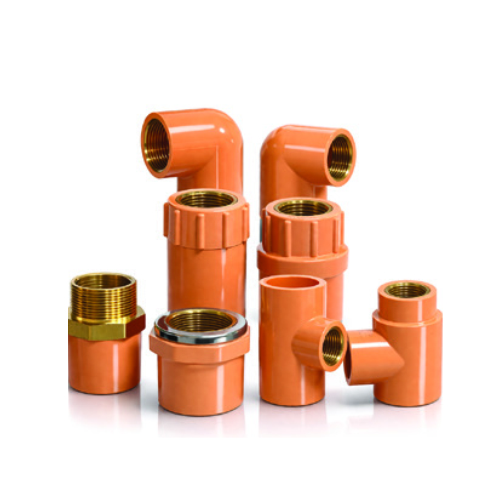

Brass Fittings: Elbows, Tees, Sprinkler-HD-Elbows, Adaptors Sprinkler- HD-Tees, etc
Simple and efficient jointing method enables faster installation with minimal tools and no hot work.
- Cutting: Cut the pipe square using ratchet cutter/ a wheel type plastic tubing cutter.
- Deburr & Bevelling: Deburr the pipe ends properly and bevel edges.
- Cleaning: Clean the pipe and fitting surfaces to remove dust.
- Solvent Cementing: Apply solvent cement on the pipe end and inside fitting socket evenly.
- Assembling: Insert the pipe into the fitting socket immediately after applying solvent cement, simultaneously rotating the pipe one-quarter turn until the stopper line (hold the assembly for at least 30 seconds to ensure initial bonding).
