Highlight of the Products

  •  Ideal for hot and cold water applications
  •  Suitable for water temperature upto 93oC
  •  Pipes & Fittings upto 2" o can withstand 28.1kg/cm2 pressure at 27oC and 6.93kg/cm2 at 82oC
  •  Wide Range of pipes and fittings from 12″ to 6″
  •  Safe for potable water
  •  UV Stabilised
  •  No bacterial growth
  •  Ease of installation
  •  Designed for over 50 years life
  •  Pipes upto 2″ are manufactured as per IS:15778:2007 and fittings as per ASTM 2846 standards
  •  Pipes above 2″ are manufactured as per ASTMF 441 & Fittings as per ASTMF 438 & 439

Product Availability, Pressure Rating and Standards

GRADE DIAMETER STANDARD OPERATING PRESSURE KG/CM3
PIPES FITTINGS 27oC 82oC
SDR 11 12” to 2” IS:15778:2007 ASTM D 2846 28.1 6.93
SDR 13.5 12” to 2” IS:15778:2007 - 22.23 5.61
GRADE DIAMETER STANDARD OPERATING PRESSURE KG/CM3
PIPES FITTINGS 23oC 82oC
SCH 40 2 12 ASTM F 441 ASTM F 438 21.09 5.27
SCH 40 3” ASTM F 441 ASTM F 438 18.28 4.57
SCH 40 4” ASTM F 441 ASTM F 438 15.47 3.87
SCH 40 6” ASTM F 441 ASTM F 438 12.66 3.16
SCH 80 2 12 ASTM F 441 ASTM F 439 29.53 7.38
SCH 80 3” ASTM F 441 ASTM F 439 26.01 6.33
SCH 80 4” ASTM F 441 ASTM F 439 22.49 5.62
SCH 80 6” ASTM F 441 ASTM F 439 19.69 4.92

CPVC is Resistant to Water Temperature

a. 93°C for SHORT term application

b. 82°C for CONTINUOUS application. It keeps hot water hotter and cold water colder as compared to GI and copper plumbing

TEMPERATURE DE-RATING FACTOR FOR CPVC
WORKING TEMPERATURE DE-RATING FACTOR
oC
23-27 1.00
32 0.91
38 0.82
49 0.65
60 0.50
71 0.44
82 0.25
93 0.20

Installation Procedure

A. Guidelines

  •  Connect minimum 1 mtr. Length of metal pipe to the outlet of hot water tank.
  •  Ventilation-proper air-venting on the hot water outlet side is a must.
  •  Use of expansion loop is highly recommended to avoid snaking effect caused due to expansion & contraction of pipe.
  •  Although CPVC has the lowest thermal conductivity amongst all alternate plastic plumbing systems, however to maintain thermal efficiency, it is recommended that the pipes should be insulated. PE foam may be used over the pipe to provide adequate insulation.

B. Horizontal and vertical spacing for pipe supporting(clamping of pipes)

NOMINAL PIPE DIA SPACING
INCH MM 20°C 50°C 70°C 80°C
FT MTR FT MTR FT MTR FT MTR
12" 12.70 5.50 1.70 4.50 1.40 3.00 0.90 2.50 0.80
34" 19.05 5.50 1.70 5.00 1.50 3.00 0.90 2.50 0.80
1" 25.40 6.00 1.80 5.50 1.70 3.50 1.10 3.00 0.90
1 14" 31.75 6.50 2.00 6.00 1.80 3.50 1.10 3.00 0.90
1 12" 38.10 7.00 2.10 6.00 2.00 3.50 1.10 3.50 1.10
2" 50.80 7.00 2.10 6.50 2.00 4.00 1.20 3.50 1.10
2 12" 63.50 8.00 2.40 7.50 2.30 4.50 1.40 4.00 1.20
3" 76.20 8.00 2.40 7.50 2.30 4.50 1.40 4.00 1.20
4" 101.60 9.00 2.70 8.50 2.60 4.50 1.40 4.50 1.40
6" 150.00 10.00 3.00 9.00 2.70 5.50 1.70 5.50 1.50

 Do not clamp supports tightly, it restricts the movement of pipe caused because of expansion and contraction.

Installation with solvent cement


CUTTING

De-Burring

Cleaning/Dry

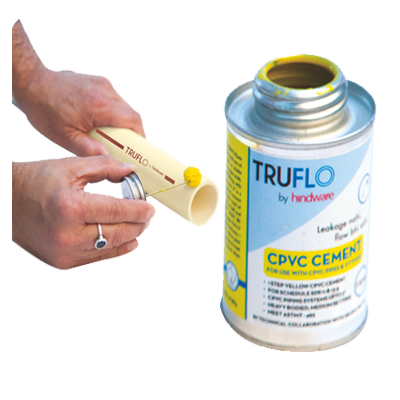

Solvent Cementing

Assembly
Solvent Cemented Jointing

a. Dry fitment-check joint of pipe to fitting without solvent cement, should fit up to 60 – 70%

b. Cold fusion joint (cold welded joint)

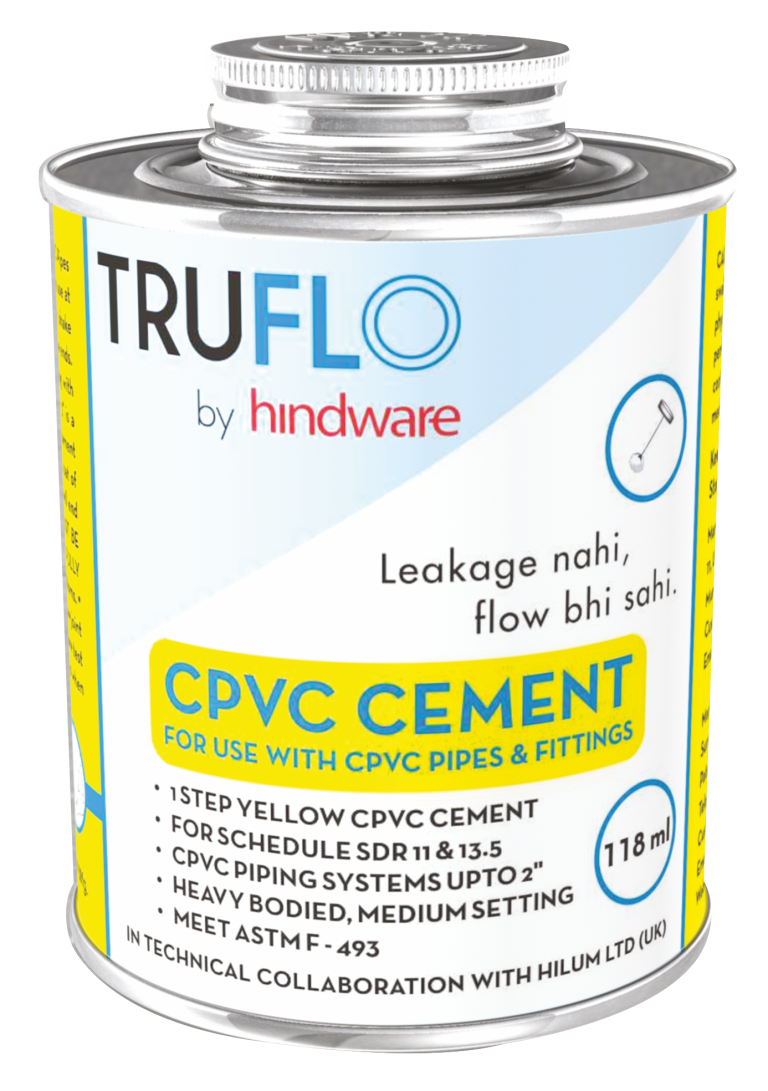

c. For diameters 12" to 2”, single step solvent cement

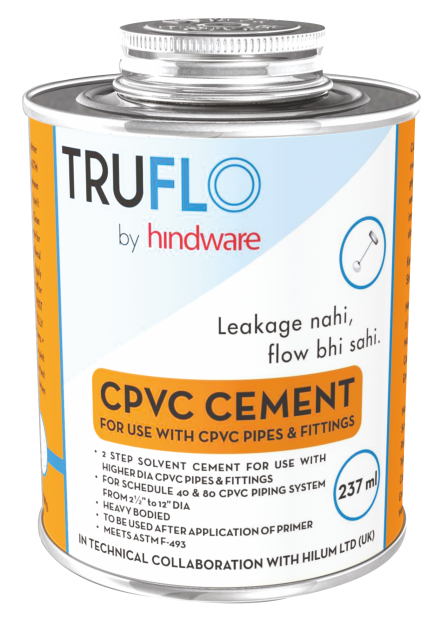

d. For diameters 212” to 4”, 2 step solvent cement (primer + solvent cement)

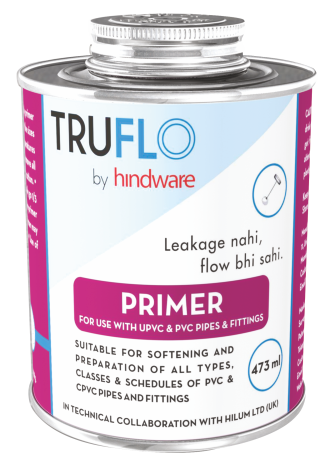

e. Primer helps to clean the surface of pipe & fitting and softens the material

AVERAGE INITIAL SET SCHEDULE FOR CPVC SOLVENT CEMENT
TEMP RANGE PIPE SIZE 12” – 114 PIPE SIZE 112” – 3” PIPE SIZE 312” – 4”
16° - 38°C 2 minutes 5 minutes 30 minutes
5° - 16°C 5 minutes 10 minutes 2 hours
-18° - -5°C 10 minutes 15 minutes 12 hours

Note - Typical set schedule is required time before it is advisable to carefully handle joint. In wet or humid conditions, additional set time maybe required of up to 50% of amount listed. Use as general guidelines only.

f. Cure time-Curing time is longer than the set time. Curing means the joint has completely matured

g. The pressure test can only be performed after the joint is completely cured

AVERAGE JOINT CURE SCHEDULE FOR CPVC SOLVENT CEMENT
RELATIVE HUMIDITY60% OR LESS PIPE 12” – 114 PIPE 112” – 2” PIPE 212” – 4”
TEMP. RANGES DURING ASSEMBLY & CURE PERIODS BAR BAR BAR
UP TO 11 11 TO 26 UP TO 11 11 TO 22 UP TO 11 11 TO 22
16° - 38°C 15 min 6 hrs 30 min 12 hrs 1 12 hrs 24 hrs
5° - 16°C 10 min 12 hrs 45 min 24 hrs 4 hrs 48 hrs
-18° - -5°C 15 min 48 hrs 1 hr 96 hrs 72 hrs 8 days

Note - Joint cure schedule is the necessary time to allow before pressurizing system. In damp or humid weather allow 50% more cure time.

In case of using paint on CPVC piping system, use only Latex based paints which are water based to make it workable and brushable. No Oil/Solvent based paints are to be used as these paints can drastically reduce the life of the systems.

Type of PIPE Colour Image
SDR 11 Red strip
SDR 13.5 Brown strip
SCH 40 Brown strip
SCH 80 Red strip

CPVC PLUMBING SYSTEM FOR HOT & COLD WATER


CPVC PIPES - HSN CODE 3917

SDR 11/SDR 13.5 Pipes Manufactured as per IS15778:2007

SDR-11 (3Mtr. Length)
ITEM CODE SIZE (MM) SIZE (IN)
CP1103015 15 12"
CP1103020 20 34"
CP1103025 25 1"
CP1103032 32 1 14"
CP1103040 40 1 12"
CP1103050 50 2"
SDR-11 (5Mtr. Length)
ITEM CODE SIZE (MM) SIZE (IN)
CP1105015 15 12"
CP1105020 20 34"
CP1105025 25 1"
CP1105032 32 1 14"
CP1105040 40 1 12"
CP1105050 50 2"
SDR-13.5 (3Mtr. Length)
ITEM CODE SIZE (MM) SIZE (IN)
CP1303015 15 12"
CP1303020 20 34"
CP1303025 25 1"
CP1303032 32 1 14"
CP1303040 40 1 12"
CP1303050 50 2"
SDR-13.5 (5Mtr. Length)
ITEM CODE SIZE (MM) SIZE (IN)
CP1305015 15 12"
CP1305020 20 34"
CP1305025 25 1"
CP1305032 32 1 14"
CP1305040 40 1 12"
CP1305050 50 2"

CPVC FITTINGS - HSN CODE:3917

Fittings Manufactured as per ASTM D2846:2007

Coupler Plain
ITEM CODE SIZE (MM) SIZE (IN)
CF01000015 15 12"
CF01000020 20 34"
CF01000025 25 1"
CF01000032 32 1 14"
CF01000040 40 1 12"
CF01000050 50 2"
Bend 45o Plain
ITEM CODE SIZE (MM) SIZE (IN)
CF03000015 15 12"
CF03000020 20 34"
CF03000025 25 1"
CF03000032 32 1 14"
CF03000040 40 1 12"
CF03000050 50 2"
Tee 90o Plain
ITEM CODE SIZE (MM) SIZE (IN)
CF05000015 15 12"
CF05000020 20 34"
CF05000025 25 1"
CF05000032 32 1 14"
CF05000040 40 1 12"
CF05000050 50 2"
Elbow 90o Plain
ITEM CODE SIZE (MM) SIZE (IN)
CF02000015 15 12"
CF02000020 20 34"
CF02000025 25 1"
CF02000032 32 1 14"
CF02000040 40 1 12"
CF02000050 50 2"
Reducer Elbow 90o
ITEM CODE SIZE (MM) SIZE (IN)
CF04020015 20X15 34" X 12"
CF04025015 25X15 1" X 12"
CF04025020 25X20 1" X 34"
Cross Tee 90o
ITEM CODE SIZE (MM) SIZE (IN)
CF07000015 15 12"
CF07000020 20 34"
Reducer MTA
ITEM CODE SIZE (MM) SIZE (IN)
CF17020015 20X15 34" X 12"
CF17025020 25X20 1" X 34"
Reducer Tee 90o Plain
ITEM CODE SIZE (MM) SIZE (IN)
CF06020015 20X15 34" X 34" X 12"
CF06025015 25X15 1" X 1" X 12"
CF06025020 25X20 1" X 1" X 34"
CF06032015 32X15 1 14" X 1 14" X 12"
CF06032020 32X20 1 14" X 1 14" X 34"
CF06032025 32X25 1 14" X 1 14" X 1"
CF06040015 40X15 1 12" X 1 12" X 12"
CF06040020 40X20 1 12" X 1 12" X 34"
CF06040025 40X25 1 12" X 1 12" X 1"
CF06040032 40X32 1 12" X 1 12" X 1 14"
CF06050015 50X15 2" X 2" X 12"
CF06050020 50X20 2" X 2" X 34"
CF06050025 50X25 2" X 2" X 1"
CF06050032 50X32 2" X 2" X 1 14"
CF06050040 50X40 2" X 2" X 1 12"
Reducer Bush Plain

ITEM CODE SIZE (MM) SIZE (IN)
CF09020015 20X15 34" X 12"
CF09025015 25X15 1" X 12"
CF09025020 25X20 1" X 34"
CF09032015 32X15 1 14" X 12"
CF09032020 32X20 1 14" X 34"
CF09032025 32X25 1 14" X 1"
CF09040015 40X15 1 12" X 12"
CF09040020 40X20 1 12" X 34"
CF09040025 40X25 1 12" X 1"
CF09040032 40X32 1 12" X 1 14"
CF09050015 50X15 2" X 12"
CF09050020 50X20 2" X 34"
CF09050025 50X25 2" X 1"
CF09050032 50X32 2" X 1 14"
CF09050040 50X40 2" X 1 12"
Female Adaptor Plastic Threaded (FAPT)
ITEM CODE SIZE (MM) SIZE (IN)
CF11000015 15 12"
CF11000020 20 34"
CF11000025 25 1"
CF11000032 32 1 14"
CF11000040 40 1 12"
CF11000050 50 2"
Male Adaptor Plastic Threaded (MAPT)
ITEM CODE SIZE (MM) SIZE (IN)
CF10000015 15 12"
CF10000020 20 34"
CF10000025 25 1"
CF10000032 32 1 14"
CF10000040 40 1 12"
CF10000050 50 2"
End Cap Plain
ITEM CODE SIZE (MM) SIZE (IN)
CF08000015 15 12"
CF08000020 20 34"
CF08000025 25 1"
CF08000032 32 1 14"
CF08000040 40 1 12"
CF08000050 50 2"
Union

ITEM CODE SIZE (MM) SIZE (IN)
CF14000015 15 12"
CF14000020 20 34"
CF14000025 25 1"
CF14000032 32 1 14"
CF14000040 40 1 12"
CF14000050 50 2"
Tank Nipple

ITEM CODE SIZE (MM) SIZE (IN)
CF12000015 15 12"
CF12000020 20 34"
CF12000025 25 1"
CF12000032 32 1 14"
CF12000040 40 1 12"
CF12000050 50 2"
Tank Nipple (With One Side Pipe Fitment)
ITEM CODE SIZE (MM) SIZE (IN)
CF13000020 20 34"
CF13000025 25 1"
Reducer

ITEM CODE SIZE (MM) SIZE (IN)
CF15020015 20X15 34" X 12"
CF15025020 25X20 1" X 34"
CF15025015 25X15 1" X 12"
CF15032015 32X15 1 14" X 12"
CF15032020 32X20 1 14" X 34"
CF15032025 32X25 1 14" X 1"
CF15040015 40X15 1 12" X 12"
CF15040020 40X20 1 12" X 34"
CF15040025 40X25 1 12" X 1"
CF15040032 40X32 1 12" X 1 14"
CF15050015 50X15 2" X 12"
CF15050020 50X20 2" X 34"
CF15050025 50X25 2" X 1"
CF15050032 50X32 2" 1 14"
CF15050040 50X40 2" X 1 12"
Step Over Bend
ITEM CODE SIZE (MM) SIZE (IN)
CF18000015 15 12"
CF18000020 20 34"
CF18000025 25 1"
Transition Bushing (IPS X CTS)
ITEM CODE SIZE (MM) SIZE (IN)
CF16015015 15X15 12"IPS X 12"CTS
CF16020020 20X20 34"IPS X 34"CTS
CF16025025 25X25 1"IPS X 1"CTS
CF16032032 32X32 1 14"IPS X 1 12"CTS
CF16040040 40X40 1 12"IPS X 1 12"CTS
CF16050050 50X50 2"IPS X 2"CTS
Ball Valve
ITEM CODE SIZE (MM) SIZE (IN)
CEBV010015 15 12"
CEBV010020 20 34"
CEBV010025 25 1"
CEBV010032 32 1 14"
CEBV010040 40 1 12"
CEBV010050 50 2"
Long Bend
ITEM CODE SIZE (MM) SIZE (IN)
CF32000015 15 12"
CF32000020 20 34"
CF32000025 25 1"
CF32000032 32 1 14"
CF32000040 40 1 12"
CF32000050 50 2"
Threaded End Plug
ITEM CODE SIZE (MM) SIZE (IN)
CEEP010015 15 12"
CEEP010020 20 34"
Concealed Valves
ITEM CODE Category SIZE (MM) SIZE (IN)
CECVQTT020 Quarter Turn Triangle 20 34"
CECVQTR020 Quarter Turn Round 20 34"
CECVFTT020 Full Turn Triangle 20 34"
CECVFTT025 Full Turn Triangle 25 1"
Mixer Adaptor
ITEM CODE Category SIZE (MM) SIZE (IN)
CEMATB2015 Top & Bottom 20 X 15 34" X 12"
CEMAAT2015 All Top 20 X 15 34" X 12"
CEMATS2015 Top & Side 20 X 15 34" X 12"

CPVC FITTINGS - BRASS - HSN CODE:3917

Elbow 90o

ITEM CODE SIZE (MM) SIZE (IN)
CF24015015 15X15 12" X 12"
CF24020015 20X15 34" X 12"
CF24020020 20X20 34" X 34"
CF24025025 25X25 1" X 1"
CF24025020 25X20 1" X 34"
CF24025015 25X15 1" X 12"
CF24032032 32X32 1 14" X 1 14"
Male Adaptor Brass Threaded (MABT)
ITEM CODE SIZE (MM) SIZE (IN)
CF26000015 15 12"
CF26000020 20 34"
CF26000025 25 1"
CF26000032 32 1 14"
CF26000040 40 1 12"
CF26000050 50 2"
Female Adaptor Brass Threaded (FABT)
ITEM CODE SIZE (MM) SIZE (IN)
CF27000015 15 12"
CF27000020 20 34"
CF27000025 25 1"
CF27000032 32 1 14"
CF27000040 40 1 12"
CF27000050 50 2"
Tee

ITEM CODE SIZE (MM) SIZE (IN)
CF25015015 15X15 12" X 12" X 12"
CF25020015 20X15 34" X 34" X 12"
CF25020020 20X20 34" X 34" X 34"
CF25025015 25X15 1" X 1" X 12"
CF25025020 25X20 1" X 1" X 34"
CF25025025 25X25 1" X 1" X 1"
CF25032015 32X15 1 14" X 1 14" X 12"
Reducer MTA (Plastic Nut)
ITEM CODE SIZE (MM) SIZE (IN)
CF29025020 25X20 1" X 34"
Reducer FTA
ITEM CODE SIZE (MM) SIZE (IN)
CF28020015 20X15 34" X 12"
CF28025015 25X15 1" X 12"
CF28025020 25X20 1" X 34"
Reducer MTA – HEXA Nut
ITEM CODE SIZE (MM) SIZE (IN)
CF31020015 20X15 34" X 12"
CF31025015 25X15 1" X 12"

CPVC FITTINGS - COMMON

Plastic Clamps -HSN CODE: 3917

ITEM CODE SIZE (MM) SIZE (IN)
CEPC020015 15 12"
CEPC020020 20 34"
CEPC020025 25 1"
CEPC020032 32 1 14"
CEPC020040 40 1 12"
CEPC020050 50 2"
Powder Coated Metal Clamps - HSN CODE: 8308
ITEM CODE SIZE (MM) SIZE (IN)
CEPC010015 15 12"
CEPC010020 20 34"
CEPC010025 25 1"
CEPC010032 32 1 14"
CEPC010040 40 1 12"
CEPC010050 50 2"

CPVC PIPES - HSN CODE:3917

SCH 40/SCH 80 Pipes Manufactured as per ASTM F441: 2013

SCH-40 (3Mtr.Length)
ITEM CODE SIZE (MM) SIZE (IN)
CP4003065 65 2 12"
CP4003080 80 3"
CP4003100 100 4"
CP4003150 150 6"
SCH-40 (5Mtr.Length)
ITEM CODE SIZE (MM) SIZE (IN)
CP4005065 65 2 12"
CP4005080 80 3"
CP4005100 100 4"
CP4005150 150 6"
SCH-80 (3Mtr.Length)
ITEM CODE SIZE (MM) SIZE (IN)
CP8003065 65 2 12"
CP8003080 80 3"
CP8003100 100 4"
CP8003150 150 6"
SCH-80 (5Mtr.Length)
ITEM CODE SIZE (MM) SIZE (IN)
CP8005065 65 2 12"
CP8005080 80 3"
CP8005100 100 4"
CP8005150 150 6"

CPVC FITTINGS - SCH - 80 - HSN CODE:3917

SCH 80 Fittings Manufactured as per ASTM F439: 2013

Coupler Plain
ITEM CODE SIZE (MM) SIZE (IN)
CF19000065 65 2 12"
CF19000080 80 3"
CF19000100 100 4"
Tee 90o Plain
ITEM CODE SIZE (MM) SIZE (IN)
CF21000065 65 2 12"
CF21000080 80 3"
CF21000100 100 4"
Transition Bushing (IPS X CTS)
ITEM CODE SIZE (MM) SIZE (IN)
CF23065050 65X50 2 12"IPS X 2"CTS
CF23080050 80X50 3"IPS X 2"CTS
CF23100050 100X50 4"IPS X 2"CTS
Elbow 90o Plain
ITEM CODE SIZE (MM) SIZE (IN)
CF20000065 65 2 12"
CF20000080 80 3"
CF20000100 100 4"
Reducer Bush
ITEM CODE SIZE (MM) SIZE (IN)
CF22065050 65X50 2 12" X 2"
CF22080065 80X65 3" X 2 12"
CF22080050 80X50 3" X 2"
CF22100080 100X80 4" X 3"
CF22100065 100X65 4" X 2 12"
CF22100050 100X50 4" X 2"

CPVC SOLVENT CEMENT & PRIMER - HSN CODE:3506

Medium Duty Step 1 (Yellow)
ITEM CODE Tube/Tin SIZE (ml)
CESYMD0029 Tube 29
CESYMD0059 Tube 59
CESYMD1059 Tin 59
CESYMD0118 Tin 118
CESYMD0237 Tin 237
CESYMD0473 Tin 473
Heavy Duty 2 Step (Orange)

ITEM CODE Tube/Tin SIZE (ml)
CESOHD0237 Tin 237
CESOHD0473 Tin 473
Primer

ITEM CODE Tube/Tin SIZE (ml)
PRIMER0473 Tin 473

Superior quality CPVC Pipes and Fittings from Truflo

Truflo Pipes, one of the leading CPVC pipe manufacturers in the market for CPVC pipes and fittings, ensures their CPVC (Chlorinated Polyvinyl Chloride) pipes and fittings are manufactured using the best material and technology, which makes them highly feasible for both hot as well as cold water distribution system. A Truflo CPVC pipe is produced by chlorination of the traditional PVC material, which adds to the CPVC pipes and fittings’ strength and enables the CPVC pipe to withstand high temperatures (up to 93°C). Temperatures over this may soften the material and weaken its joints. Also, our CPVC are versatile to fit a diverse range of applications.

Our CPVC pipes and fittings are fit for a variety of applications like agriculture systems, industrial process lines, irrigation systems, swimming pools, water supply systems, and fire fighting systems etc. They are superior to Ductile pipes (D.I), Copper Iron(C.I), and Reinforced Cement Concrete (RCC) pipes and come with added benefits like lightweight, excellent corrosion, easy and fast installation, and chemical resistance, long life, high flow rates, and economical.

Our CPVC pipes, CPVC fittings, and CPVC pipes and fittings are the most viable option for hot and cold water distribution systems as our piping systems are approved and certified to carry potable water.

CPVC Pipes and Fittings for a wide range of applications

Being among the best CPVC pipe manufacturers, our CPVC pipes are produced in SDR and SCH series - SDR-11 (3 metres and 5 metres), SDR-13.5 (3 metres and 5 metres), SCH-40 (3 metres and 5metres), and SCH-80 (3 metres and 5 metres). They are made from identical CPVC compound material having the same physical properties. The CPVC fittings include coupler plain, elbow 90, bend 45, reducer elbow 90, tee 90, reducer tee 90 plain, cross tee 90, end cap plain, reducer bush plain, MAPT, FAPT, tank nipple, union, reducer, transition bushing, reducer MTA, step over bend, threaded end plug, and ball valve are all available in different sizes to fit your specific applications. The CPVC Brass Fittings include elbow 90 brass, tee brass, MABT, FABT, reducer MTA brass, and Reducer FTA brass of different sizes. All our CPVC pipes are produced in compliance with the set industry standards.

Along with being able to withstand high hot and cold temperatures, CPVC pipes and fittings are also self-extinguishing and hence, do not support combustion, have lower thermal conductivity, no bacterial growth compared to other Piping Material, and have resistance to UV.

ABOUT TRUFLO

Introducing TRUFLO by hindware pipes & fittings. Building on a legacy of innovation, TRUFLO represents the very superiority and quality that has been built over five decades now. With TRUFLO, Hindware reaffirms its commitment to provide complete plumbing solutions. Hindware and TRUFLO are part of Brilloca. HSIL demerged its distribution and marketing business relating to building products into Brilloca.

Mailing Address
  • 501 & 504, Block – A, “The Platina”, Survey No.136, Gachibowli Miyapur Road, Gachibowli, Hyderabad, Telangana – 500 032.
  • 040 – 6628 8000
  • truflopipes@hindware.co.in
